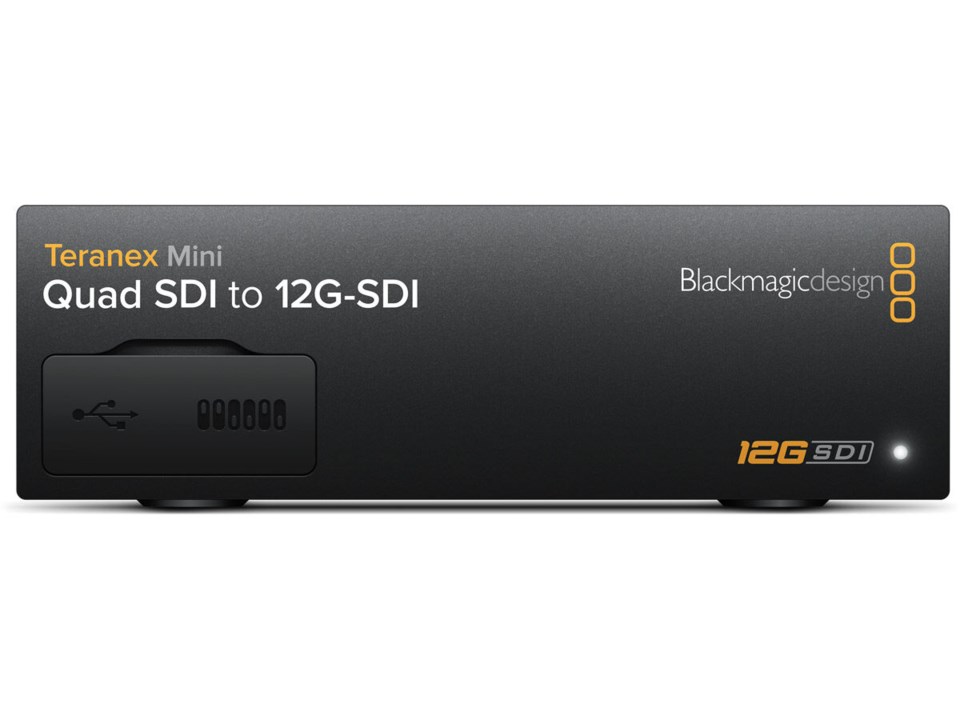

Blackmagic Design Teranex mini - Quad SDI till 12G-SDI
Teranex mini - Quad SDI till 12G-SDI
Ger dig möjligheten att konvertera från Link SDI till 12G-SDI så at du kan ansluta din Quad Link Ultra HD utrustning till 12G-SDI Ultra HD utrustning. Du kan även ansluta utrustning med 4 BNC kontakter via 1 st 12G- SDI BNC kabel för anslutning till Routers, switchar, projektorer m.fl.
Anslutningar
SDI Video Input
4 x 12G-SDI SD/HD/2K/4K auto switching
SDI Video Output
1 x 12G-SDI output
Standardformat
SD Format Support
525/29.97 NTSC, 625/25 PAL
HD Format Support
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.
2K Format Support
1080PsF23.98, 1080PsF24, 1080PsF25, 1080p23.98, 1080p24, 1080p25.
Ultra HD Format Support
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p60,
4K Format Support
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30.
SDI Signaler
SDI Video Rates
SDI video connections are switchable between standard definition, high definitionlevel A and level B 3G-SDI, 6G-SDI and 12G-SDI.
SDI Video Sampling
4:2:2 and 4:4:4
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24-bit.
SDI Color Space
YUV & RGB
